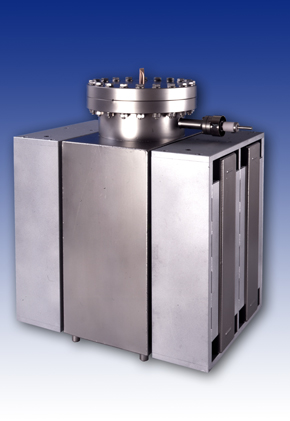

IPT 200  -   TECHNICAL DATA
Maximum starting pressure
1 Pa
Operating range
10-2 - 10-9 Pa
Ultimate pressure
10-9 Pa
Anode voltage
- 6 kV
Magnetic induction between poles
0.12 T
Pumping speed for N2 AT 10-4  Pa
200 l/s
Connection flange
DN 160 CF
Weight
72  kg
Maximum leakage current
8 µA
