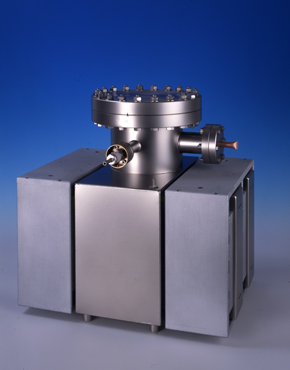

IPT 100  -   TECHNICAL DATA   Maximum starting pressure 1 Pa Operating range 10-2 - 10-9 Pa Ultimate pressure 10-9 Pa Anode voltage - 6 kV Magnetic induction between poles 0.12 T Pumping speed for N2 AT 10-4  Pa 100 l/s Connection flange DN 160 CF    Weight 45  kg Maximum leakage current    4 µA
